Why is east-west solar mounting system becoming a new trend in flat rooftop photovoltaic? |Art Sign May 25,2026

A revolution in space utilization and profitability is quietly taking place on prime commercial and industrial rooftops.

So, what exactly is an east-west oriented rooftop solar support system?

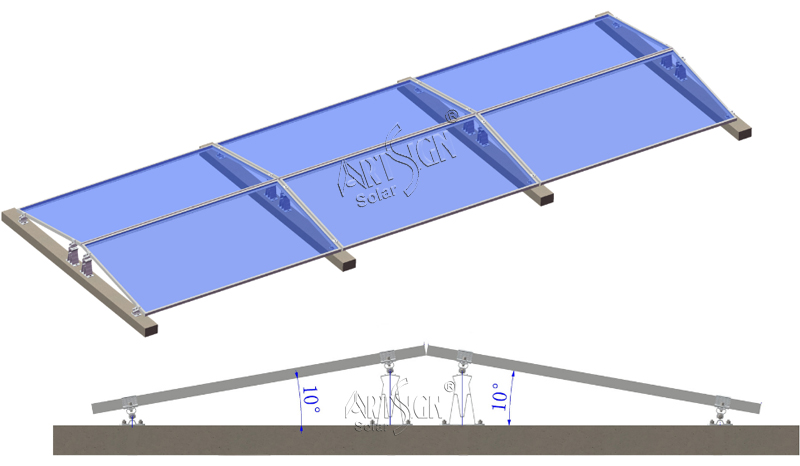

solar panel brackets

In short, it's an innovative solution that arranges photovoltaic (PV) modules back-to-back in an "A" shape, with the modules facing east and west. It not only redefines the mechanical balance of rooftop PV systems but also achieves a smooth power generation curve, ensuring stable power generation from sunrise to sunset.
In the past, traditional tilted solar panel brackets required large gaps on the roof to avoid blocking sunlight, resulting in significant space waste. However, the east-west oriented support system, with its unique enclosed structure, eliminates row spacing limitations, maximizing the use of rooftop space!
We'll take a detailed look at this rooftop solar system support structure today to see how it can
help homeowners increase their green electricity income by 30%.
Eliminating Space and Maximizing Rooftop Utilization

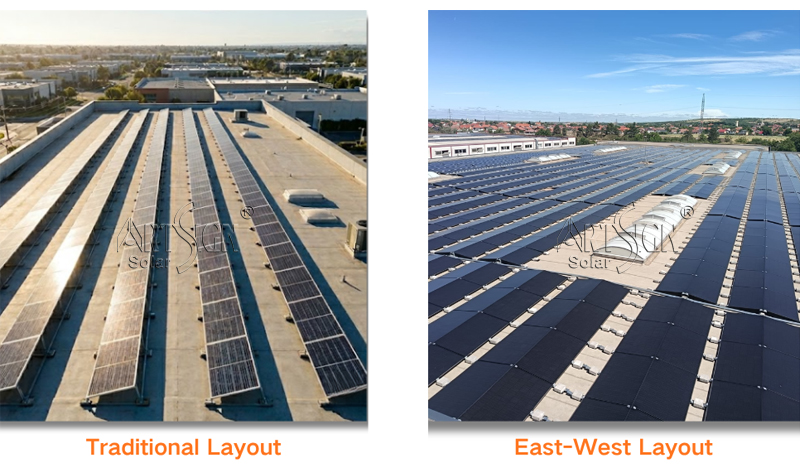

For commercial and industrial photovoltaic systems, rooftop space is essential. The impact of shade on solar panel electricity generation is a major disadvantage of conventional layouts. A distance of one to two meters must be kept between the supporting structures in order to avoid front-row modules from obstructing sunlight from reaching rear-row modules. These gaps squander important rooftop resources.
This restriction is directly violated by back-to-back systems.
1. Zero-gap installation: Shading issues are prevented by joining the modules end to end to create a continuous, flawless triangle ridge structure.
2. 20%–40% increase in installed capacity: While comparable systems can only install 1MW of solar PV mounting systems on the same roof surface, our technology can easily attain installed capacities of 1.3MW or even higher.This translates into more efficient power generation and cheaper installation costs for commercial real estate.

High-Density Rooftop Power Engineered for Industrial Peak Demand
Many people wonder about east-west industrial solar mounting structure: "East-west isn't the optimal tilt angle, so wouldn't that reduce the module's power generation?"
Yes, but this is only a localized loss; in return, it brings huge overall profits!
Traditional south-facing layouts, in pursuit of maximum power generation per module, are forced to leave huge gaps. This design not only sacrifices installed capacity, but its power generation mode is also facing awkward pain points in industrial and commercial scenarios.
1.The Solar Mismatch: Sharp Production vs. Peak Demand
Traditional south-facing solar power plants have a power generation curve that looks like a "sharp peak," with electricity output concentrated in a huge spike during the brief two-hour window between 11:00 AM and 1:00 PM.
But for the majority of factories, this falls exactly during the lunch break. The manufacturers are unable to use the abundant solar power produced, therefore it is sold to the grid at incredibly low "surplus electricity" pricing.However, when factories are running at maximum capacity in the morning and evening, conventional south-facing solar power facilities shut down early, requiring businesses to buy pricey grid electricity.
2.The East-West Solution: A Perfect "Double-Peak Relay"
This industrial solar rooftop solutions photovoltaic system is oriented east-west and produces steady, round-the-clock electricity. The system produces an ideal "double-peak relay" of power generation curves because of its special angled design:
The factory's morning peak electricity demand is accurately captured by east-facing modules, which start producing electricity at sunrise. In the afternoon, west-facing modules link effortlessly, supplying the remaining electricity need prior to the nighttime peak when costs increase.
Although the peak power generation of individual modules is somewhat reduced by 5% to 10% due to the east-west configuration, the overall installed capacity is increased by nearly 30% because there is no longer any space between modules. This arrangement greatly increases the factory's self-consumption rate when paired with a broader, smoother power generation curve.
Every kilowatt-hour saved by self-consumption in commercial and industrial photovoltaic systems is significantly more valuable than the cost to the grid. This back-to-back, east-west support system maximizes roof area, guaranteeing that every kilowatt-hour of electricity is actually used where it is most important to the business!
Securing Industrial Assets: The Weatherproof Art Sign Shield Engineered for Extreme Storms
Commercial and industrial roofs must meet strict requirements for load-bearing capacity and waterproofing, particularly for older concrete roofs or factory buildings that are prone to deformation. Due of their vast windward area, traditional photovoltaic support systems can easily provide significant lift, especially during storms. Additionally, conventional techniques of preventing roof collapses usually include removing the roof and drilling for reinforcement or installing enormous concrete counterweights, both of which present significant safety risks in the event of subsequent incidents.
An excellent answer to this industrial problem is provided by Art Sign's east-west roof support system:

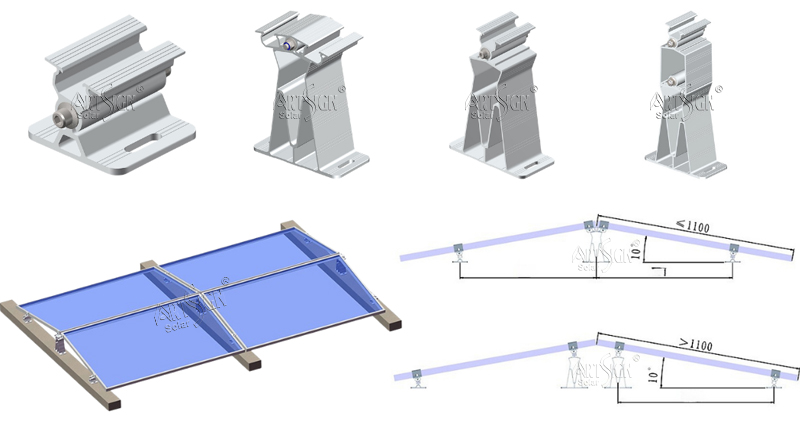

solar PV mounting

1.Natural Aerodynamic Closed Loop: Effect of Wind Blocking
The Art Sign team's closed "A-shaped" east-west structure forms a streamlined, organic ridge for the system as a whole. Strong winds cause the airflow to naturally slide over the components' sloping surfaces, creating ideal aerodynamic self-blocking. This significantly lessens the risk of storms by virtually eliminating wind suction inside and behind the support structure.

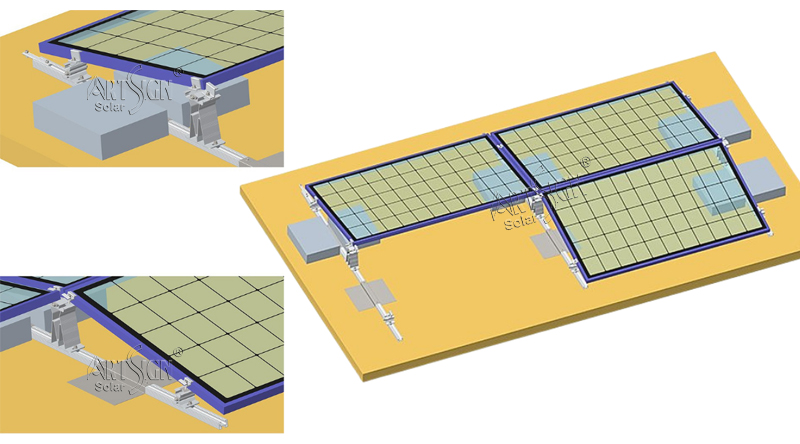

industrial solar mounting structure

2.Non-Penetrating Ballasted Structure: Elimination of Load and Leakage Risks
Art Sign's east-west support system greatly minimizes the requirement for counterweights because of its superior low-drag shape.
No Waterproofing Flaws: We use a tried-and-true rectangular concrete block ballast. Roof leaks can be totally avoided in high-wind areas by installing special aluminum pads at the base of the support system, which eliminates the need to drill a single screw or hole in the roof.
High-Standard Material Protection: Art Sign provides a lightweight, high-strength AL6005-T5 aluminum alloy with an anodized surface for a variety of commercial and industrial roof needs. This guarantees the support system has a corrosion-resistant lifespan of more than 25 years while drastically lowering the additional strain on the roof.
3.Global Standard Certification: Verification of Quantifiable Structural Safety
Every Art Sign mounting system shipped undergoes rigorous simulation using professional engineering software to ensure its layout and structural design strictly comply with international mainstream wind and snow load standards such as JIS C8955, EU standards, and AS/NZS 1170. Whether facing extreme typhoons in coastal areas or heavy snowfall in high-latitude regions, Art Sign can provide professional solar mounting solutions for your commercial and industrial rooftops.
In essence, the photovoltaic industry's development path has changed from pursuing the theoretical power generation efficiency of individual modules to maximizing the revenue per square meter of commercial and industrial rooftops, and the rise of east-west layouts represents a cautious return to the industry's commercial core. East-west layouts are increasingly the favored option for flat roof solar investment worldwide due to their flawless aerodynamic construction, smooth curves better suited for commercial and industrial applications, and record-breaking installed capacity.
As a skilled producer of solar installation systems, Art Sign is dedicated to converting cutting-edge mechanical design into real financial advantages for our clients. We are aware that every commercial and industrial roof is different in terms of orientation, load-bearing capacity, and local wind and snow load conditions.
Is your business or industrial roof underutilized and still exposed to the sun?
Avoid wasting your resources on unnecessary roof spacing. Just provide us the specifics of your project and the size of your roof to get in touch with us.
For any inquiry of solar panel mounting system, pls contact us, E-mai:sales@artsign.net.cn, Whatsapp / Wechat / Skype:+008618030235875, thanks.
